I have a robosapien v2, and he can`t tilt his head vertically- it seems a gear in the gear box is broken.

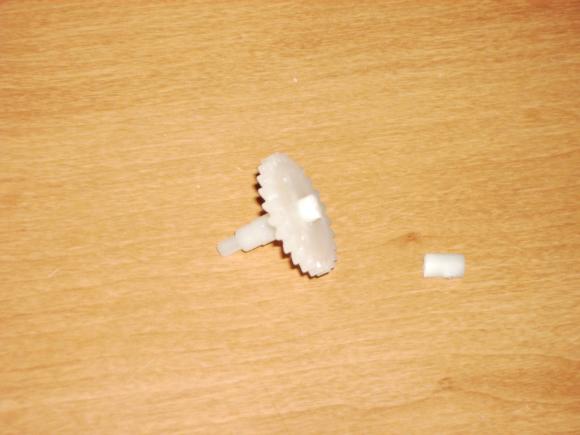

Huge Update: I found the problem with my V2- the part that joins the output of the head tilt rotation sensor and the neck was broken in two- here`s a pic of the broken gear.
Member
Melbourne, AustraliaI don't know about the head tilting vertically, but that clicking noise when he turns his head to the left is bad.

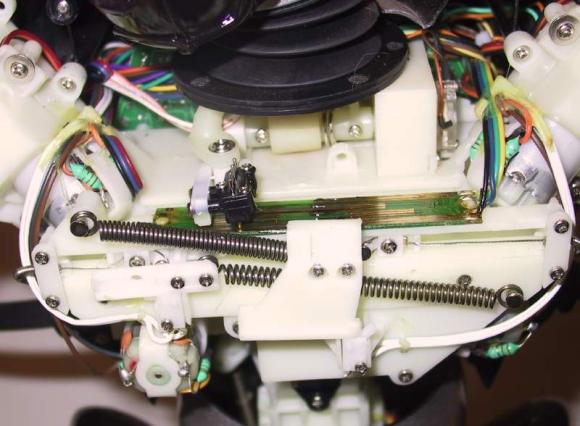

Bellow the head, in the chest, is a long thin circuit board, with several lines on it. There is also an arm with little prongs on it, that contact with the lines, that moves left and right when he turns his head. Check that the prongs are making good contact with lines on the board.
Member
Melbourne, AustraliaIf you take a look over in this thread at the photo's Mr Scott has posted, you can see the board I am talking about in the last photo.
Moderator
United StatesI'll post it here, for convenience....

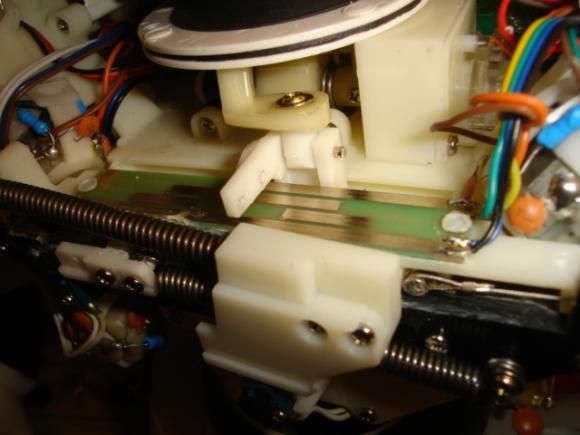

The black disk at the top of the photo is the base of the RSV2 neck.
ScottE -- Member (always) & Moderator (when needed)
Member
United StatesTHe prongs are making contact, so he thinks his head is okay. I still think it`s the gear box- when I try to tilt the head I hear a whirring noise, but the head dosen`t move.
Member
Jacksonville, United StatesI would say you have a broken gear in the Gearbox as well, The only way to find out is to remove the head and remove the gearbox and open it up. You may be able to make another gear by making a mold of the Gear from another gearbox and the relacing it. If you need help in this area let me know. GWJax
GWJax, To Hack and make mods on robots is a life style and comes natural and not by choice. If a robot has a screw to open it then it must be opened!
Member
United StatesWow. The idea of making a mold for the gear sounds a bit over the top. Couldn`t I buy on from wow wee?
Member
Jacksonville, United StatesDon't know if they sell parts for their robots, I have always made my spair parts. I guess find the gears that are broken then take a picture of it in the gearbox and then out and send it to WoWWee and see if they will sell one to you.
GWJax, To Hack and make mods on robots is a life style and comes natural and not by choice. If a robot has a screw to open it then it must be opened!
Member
United States
Member
Jacksonville, United StatesWhats the url for this location. and do they have a parts diagram for all their bots?
GWJax, To Hack and make mods on robots is a life style and comes natural and not by choice. If a robot has a screw to open it then it must be opened!
Member
Jacksonville, United StatesJust another question for you, If you knew that you could get the parts from WowWee then why did you post this thread? Was if for reassurance before you opened up the head to check the gearbox or what? Just wanted to know.
GWJax, To Hack and make mods on robots is a life style and comes natural and not by choice. If a robot has a screw to open it then it must be opened!
Member
United StatesAccually, I noticed that when I was contacting wow wee about the problem- which I did after posting the topic.
and the url is:http://www.wowweesupport.com/contactus.php
The page mentions that you can buy parts for the online store, but they only have fly tech parts.
Member
Jacksonville, United StatesWell that puts a damper on your Bot. Have you identified your gear or gears that are broken? If so post a picture and I'll see what I can do in finding you a replacement or making your own. Now that you know that you can not buy the gear it makes better sence to make your own. Dose it not? Once you understand how to make molds you'll be making them all the time just to save time and you will always have a replacement if you need one. Just let me know what you want me to do. I do have a V2 so if I need to open up the head and get the gearbox out, I can show you how to make your own.
GWJax, To Hack and make mods on robots is a life style and comes natural and not by choice. If a robot has a screw to open it then it must be opened!
Member
United StatesI haven`t found which gear is broken, yet.
It seems like I could get the gears from the wow wee support site, though.
edit: do you have any tips for getting the gearbox out?
Member
Jacksonville, United StatesWell if you need help from me just PM me.
GWJax, To Hack and make mods on robots is a life style and comes natural and not by choice. If a robot has a screw to open it then it must be opened!
Member
United States
Member

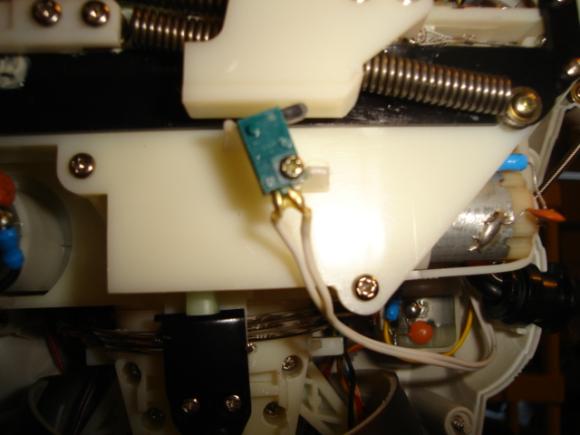

Jacksonville, United Statesrybuger1, I looked at the video again and compaired it with mine, As I see it you do not have a broken gear but rather than a malfunction on a sensor that is over shooting the movements. here is a picture of the motor your looking for its right infrot of the chest and under the springs.:

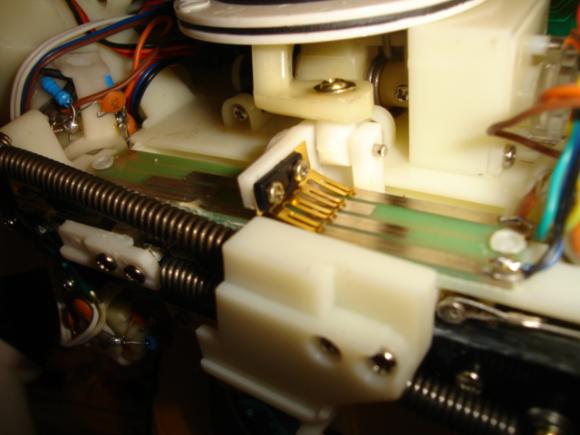

Now in the next picture you'll see that board with the brushes on it.
With the brushes in this possition use your meter and make sure that all connection on the board are shorted togeather. Now re move the brush, each line on the board is open to each other which means they do not conduct as before with the brush added. The one line we are concerned about is the 2 short lines use your meter to check to see if both are connected with the blue wire if they are not remove the board and solder on the back of the board a small wire connecting these pads togeather. This is whats happening. as you go into the demo mode, when its time to move the head and fingers it is not seeing the ground pulse from these lines so it thinks it still has more room to move. If the lines on the board are ok then bend the brushes down more so they connect very well with the board. This will fix your problem. If not let me know you may have a broken wire. If so ohm out the blue wire from the board to the connector in the back and make sure you disconnect the plug from the board and move the wire around, pulling and tugging on it while you measure the continunity of the wire.
Also check the green wire in the same maner. Let me know the results. Also check that Green switch that you see in the first picture. Thanks GWJax
GWJax, To Hack and make mods on robots is a life style and comes natural and not by choice. If a robot has a screw to open it then it must be opened!
Moderator
United StatesKudos to GWJax for going above and beyond the call of duty by stripping down his bots to duplicate symptoms other members report.
ScottE -- Member (always) & Moderator (when needed)
Member
Jacksonville, United StatesMrScott, Thats why I here to help others and learn more about the WowWee product lines. Plus I enjoy it. Thanks for noticing me.
GWJax, To Hack and make mods on robots is a life style and comes natural and not by choice. If a robot has a screw to open it then it must be opened!
Member
Melbourne, AustraliaHmmm... A broken sensor.... I seem to recall saying that way back at the begining.
Kudos on the level of detail. Do you have alternate instructions in case
Member
Melbourne, Australiabtw, the green switch is not related to movement. Its sole purpose is to determine if the fingers on the hands have closed fully. ie, if its holding something or not.
Member
Jacksonville, United Statesnocturnal thanks for the input on the green switch, that was a after thought, I did not cut that wire to to fully simulate the problem. next time I'll do a complete simulation.
GWJax, To Hack and make mods on robots is a life style and comes natural and not by choice. If a robot has a screw to open it then it must be opened!
Member
United States
Member
Jacksonville, United StatesGreat let me know if I have to do more research. Although I did smiulate the problem. But that does not mean that something else is causing this.
GWJax, To Hack and make mods on robots is a life style and comes natural and not by choice. If a robot has a screw to open it then it must be opened!
Member
Jacksonville, United StatesNocturnal said: Hmmm... A broken sensor.... I seem to recall saying that way back at the begining. Kudos on the level of detail. Do you have alternate instructions in case
Yes I do Nocturnal you could make a tester with a simple flashlight and some wire or make your own continuity tester with a LED a resistor and a battery. If any one need such a devise I'll show them how easy it is to make one.
Also if you have a multimeter with no continunity tester on it set your meter to the lowest ohm's setting if you get all 000 on your meter then you have a short. Just had to add the first question in.
GWJax, To Hack and make mods on robots is a life style and comes natural and not by choice. If a robot has a screw to open it then it must be opened!
Member
Melbourne, Australia:) I probably still have mine around here somewhere. I went all out using an LED torch, I soldered some blunted needles onto the wire leads and covered the joins with shrink wrap, seemed like such a brilliant idea, until I stabbed myself a few times.
Testing resistance can fool you when your dealing with a break in a wire that is making intermittent contact.
